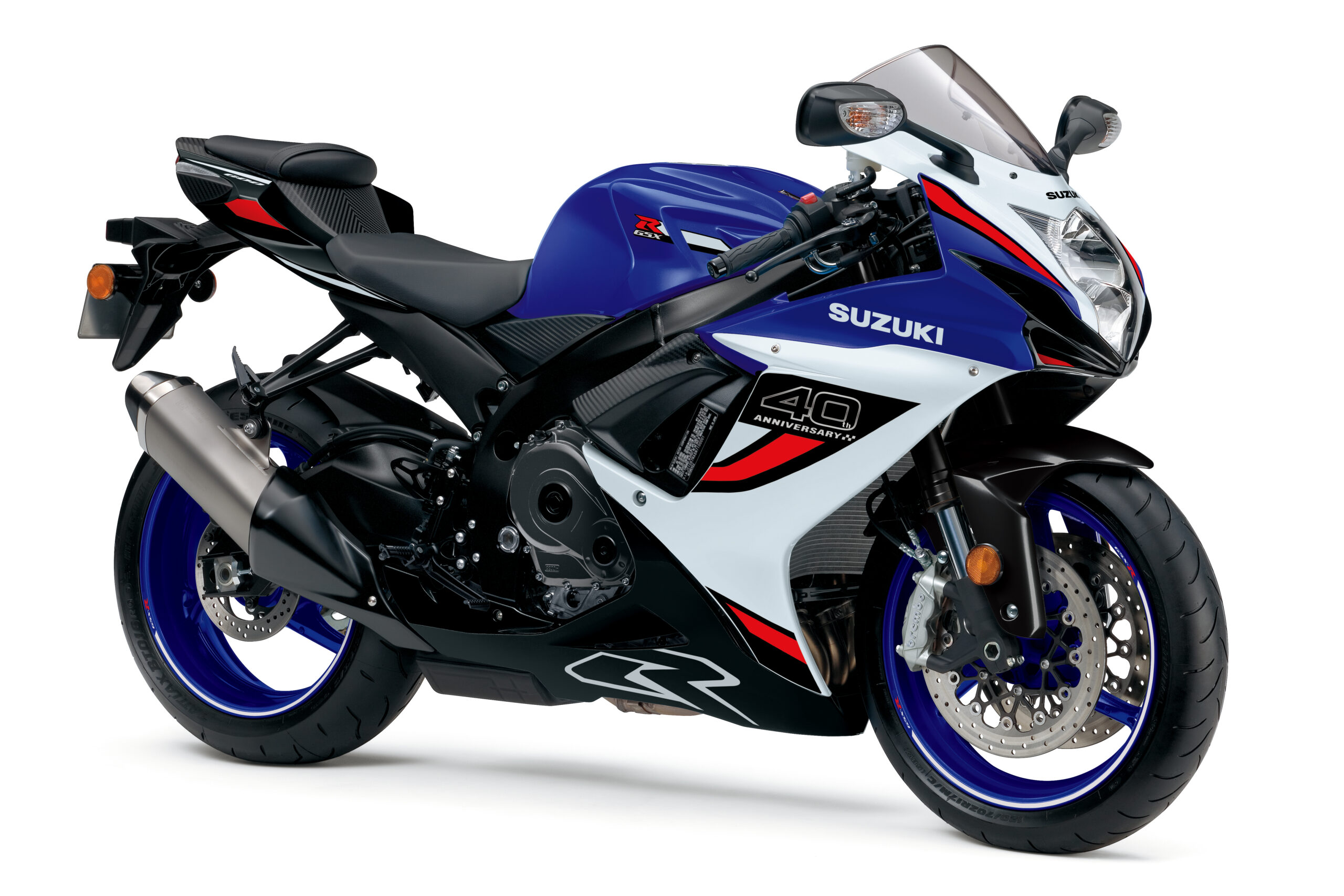

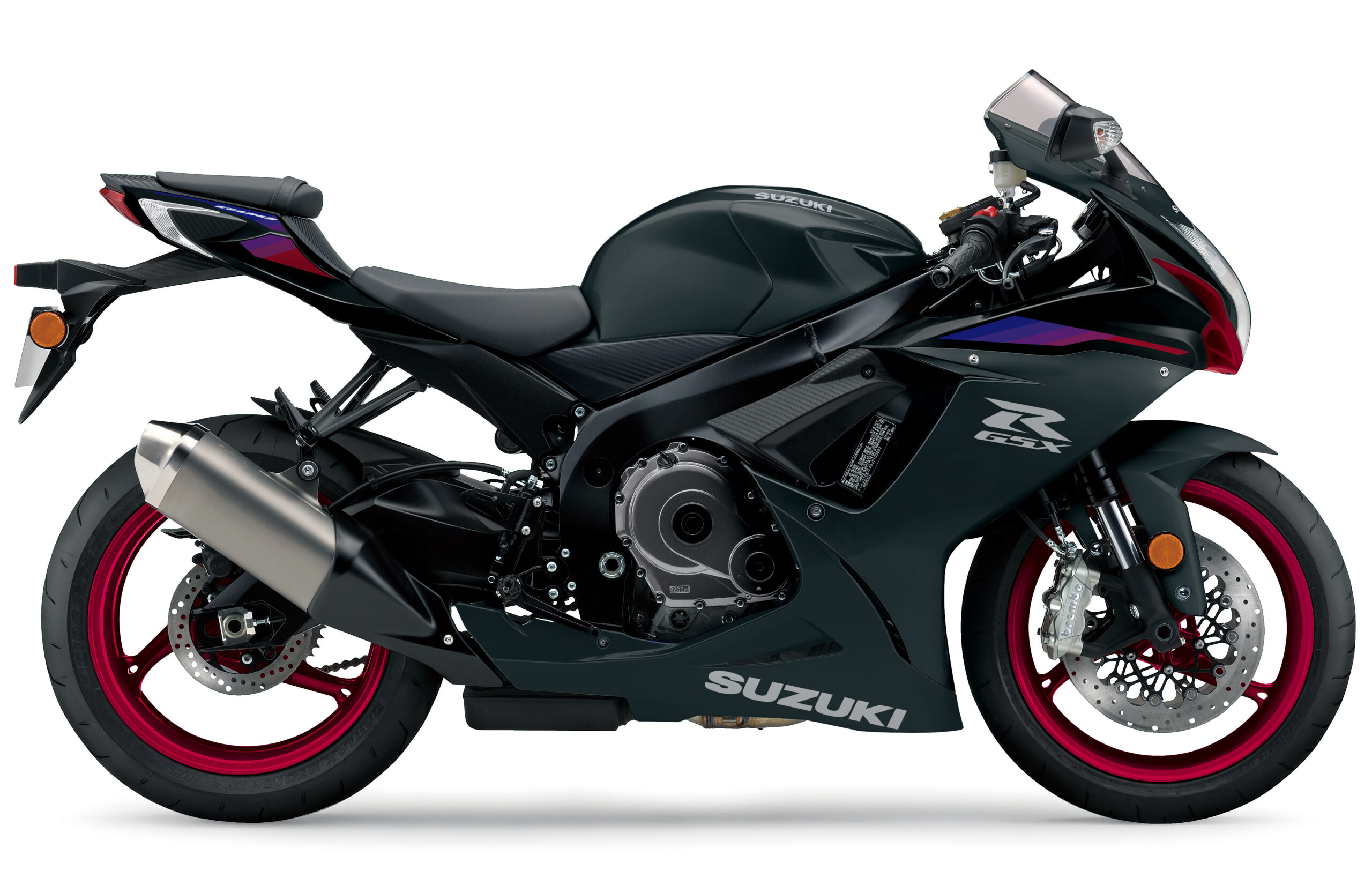

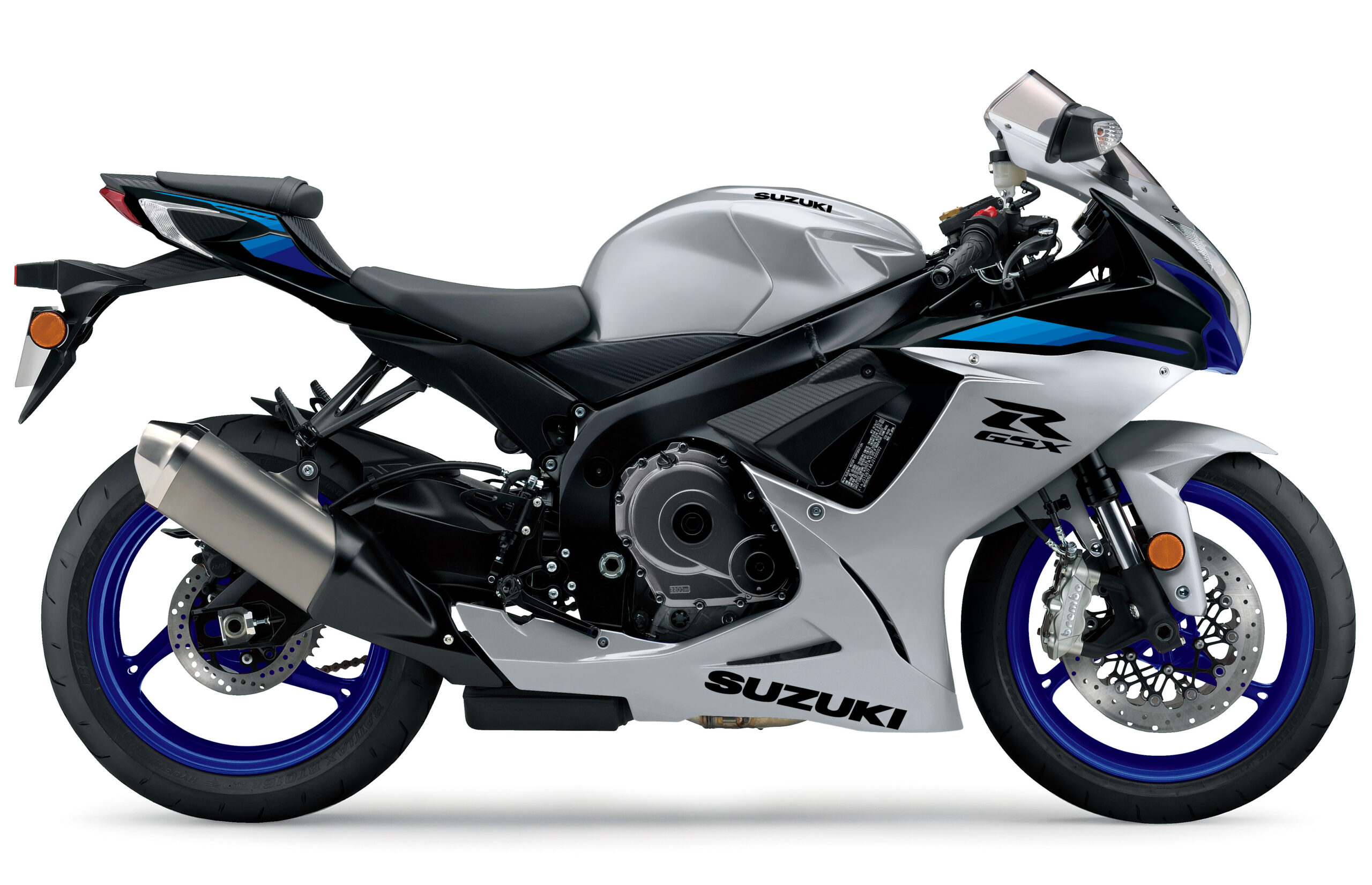

GSX-R600
Description
TECHNICAL SPECIFICATIONS | |
ENGINE | |
Type | 4-stroke, 4-cylinder, liquid-cooled, DOHC |
Displacement | 599cc |
Bore x Stroke | 67.0 mm x 42.5 mm (2.638 in x 1.673 in) |
Compression Ratio | 12.9 : 1 |
Fuel System | Suzuki Fuel Injection |
Starter | Electric |
Lubrication | Wet sump |
Ignition | Electronic ignition (Transistorized) |
DRIVETRAIN | |
Transmission | 6-speed, constant mesh |
Final Drive | RK525SMOZ8, 114 links, Chain |
CHASSIS | |
Suspension Front | Inverted Telescopic, coil spring, oil damped |
Suspension Rear | Link type, coil spring, oil damped |
Brakes Front | Brembo, Disc, Twin |
Brakes Rear | Disc |
Tires Front | 120/70ZR17M/C (58W), tubeless |
Tires Rear | 180/55ZR17M/C (73W), tubeless |
Fuel Tank Capacity | 17.0 L (4.5 US gal ) |
DIMENSIONS | |
Overall Length | 2030 mm (79.9 in) |
Overall Width | 710 mm (28.0 in) |
Overall Height | 1135 mm (44.7 in) |
Wheelbase | 1385 mm (54.5 in) |
Ground Clearance | 130 mm ( 5.1 in) |
Seat Height | 810 mm (31.9 in) |
Curb Weight | 187 kg (412 lbs ) |
Features | |
ENGINE FEATURES | |
A 599cc, four-cylinder engine with a race-proven oversquare bore/stroke ratio provides exceptionally potent, high-revving performance. | |
Shot-peened conrods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes help ensure efficient performance. | |
Class leading Suzuki Dual Throttle Valve (SDTV) fuel injection system includes fine-spray 8-hole injectors, providing improved fuel atomization contributing to more complete combustion in the cylinder. | |
Advanced, MotoGP-developed transistorized ignition control circuit helps maintain more precise ignition timing across the range of engine temperatures. | |
Lightweight, durable forged pistons are designed with the Finite Element Method (FEM) and fatigue analysis technology and optimized camshaft profiles was developed using proven MotoGP racing technology. | |
A 4-into-1 stainless-steel exhaust system features a titanium muffler, which carries a Suzuki Exhaust Tuning (SET) valve. The system maximizes torque and improves throttle response, especially in the low-to-mid RPM range. | |
Suzuki Drive Mode Selector (S-DMS) offers push-button selection of two racing-developed engine control maps to suit road conditions and personal preference. | |
Suzuki Composite Electrochemical Material (SCEM) plated cylinders integrated into the upper crankcase helps reduce friction, improve heat transfer, increase durability and provide a better ring seal. | |
TRANSMISSION FEATURES | |
A six-speed close-ratio transmission features vertically staggered shafts to reduce overall engine length. | |
Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry. | |
CHASSIS FEATURES | |
Race-developed, lightweight Showa Big Piston front-Fork (BPF) delivers superb feedback and consistent performance. | |
Lightweight and compact: twin-spar aluminum cradle frame made of five cast sections and cast swingarm. | |
An electronically Electronically controlled steering damper provides lighter steering at lower speeds and more damping force on the racetrack and at highway speeds.steering damper provides lighter steering at lower speeds and more damping force at racetrack and highway speeds. | |
Front brakes feature fully floating 310mm discs and radial-mounted, four-piston Brembo monoblock calipers. | |
A single Showa rear shock features externally adjustable rebound and compression damping, along with adjustable ride height. | |
ADDITIONAL FEATURES | |
3-way adjustable footpegs, adjustable shift lever, and short fuel tank help compose a comfortable riding position. | |
Compact, lightweight instrument cluster features an analog tachometer with LCD readouts of the speedometer, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS and gear position indicators. Also has a built-in lap timer/stopwatch and programmable engine RPM indicator. | |
Small, simple and lightweight bodywork featuring exciting, aerodynamic styling |
